5 ROW FIXED BLEACHER

$22,322.00 NZD
  • CODE
    Title
    STOCK
    QUANTITY
    QMB-A515-FL3H
    5 ROW FIXED BLEACHER
    Due Soon – Order Now
    QMB-A515-FL3H
    5 ROW FIXED BLEACHER
    Available: Due Soon – Order Now
    $22,322.00
QMB-A515-FL3H
5 ROW FIXED BLEACHER
Available: Due Soon – Order Now
$22,322.00
QMB-A515-FL3H
5 ROW FIXED BLEACHER
Available: Due Soon – Order Now
*Prices includes GST Please input a quantity


  • Product Details
  • Product FAQS
  • Shipping and Return
  • Sizing Chart

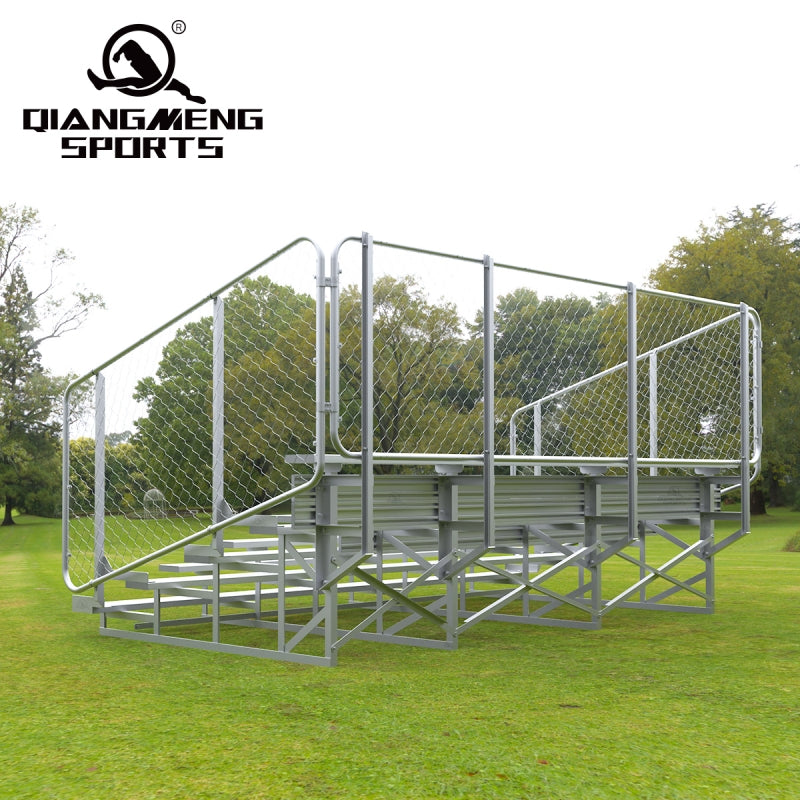

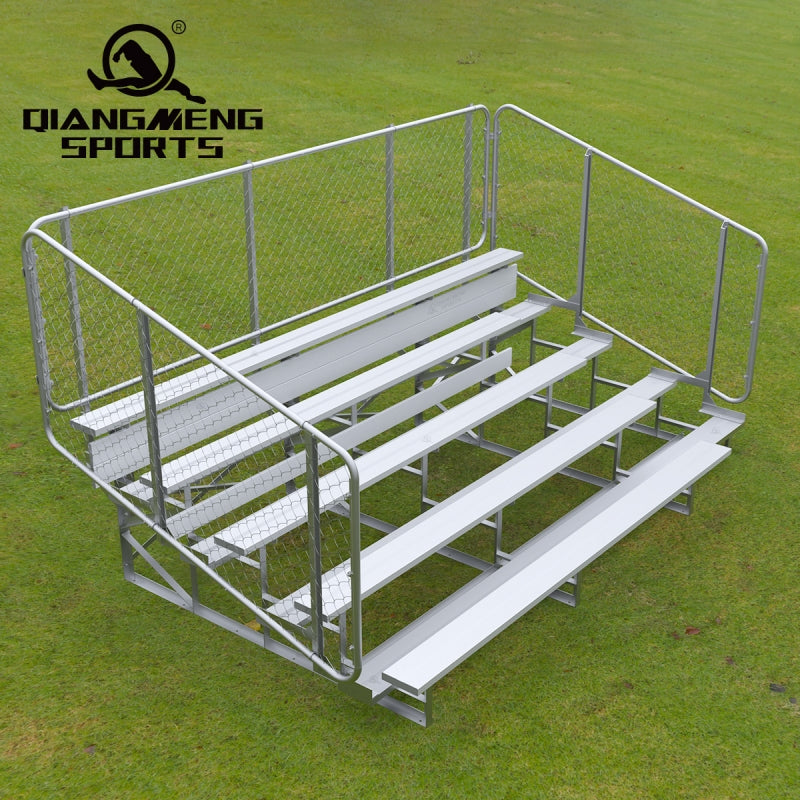

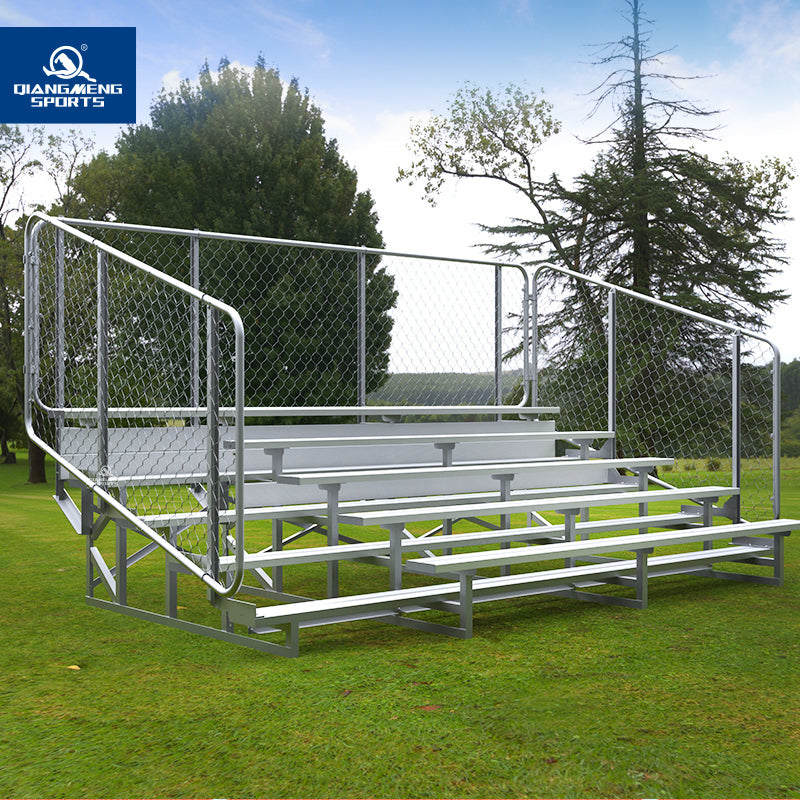

5 Row Fixed Bleacher - 15ft Length

Aluminium Bleachers Seating system, complete product is designed and manufactured by high strength of 6061-T6 Aluminium alloy on feet and seat plank and same material angle frame understructure which is ideal for level sites. Attach to a concrete foundation or install with-in ground anchors. Suitable for large sports fields and events which accomodate hundreds of seats.

Specifications:

  • Length x Width x Height: 4.8m x 3.4 x 2.4m
  • Net Weight: Single Seat Frame: 12.2kg
  • Total Frame Weight: 512.9kg
  • Security: Frame mounted with expansion bolts for easy assembly and disassembly
  • Footboard Finish: Oxide sandblasting
  • Material: Bottom frame welded from 6063-T5, 5mm thick angle aluminium seat, footboard and footrest are extruded from 6061-T6 aluminium alloy
  • Capacity: 42
  • Features: 5 rows
  • Seating Size: 240mm ' 45mm
  • Aluminium Plank / Thread: 240mm ' 45mm
  • Footrest: 150mm ' 25mm aluminium alloy
  • Galvanised Chainlink Fence: 48mm ' 2.5mm thickness
  • Chainlink Fence: 48mm ' 2.5mm thickness
  • Finish: Mill finish, anodised sandblasting
  • Fixing: Expansion screws
